Jetpack compose flow: How to implement search using Room

Introduction

This code demonstrates a Jetpack Compose application that implements search functionality using Room database. The application manages a list of employees and allows users to:

Search for employees based on a name prefix.
Add 100 employees at once.
Clear all employees from the list.

The code utilizes several key components:

Jetpack Compose for building the user interface.
Room for persisting employee data in a local database.
ViewModel to manage the application state and data access logic.
Flow for handling asynchronous data updates.

Breakdown

The code is divided into several Kotlin files:

MainActivity.kt: This is the main activity class that sets up the content of the app using Jetpack Compose. It defines the MainContent composable which displays the UI elements.
RoomSingleton.kt: This class defines a singleton instance of the Room database named RoomSingleton. It provides access to the EmployeeDao for interacting with the employee data.
RoomEntity.kt: This class defines the data structure for an Employee object with fields for ID and full name.
RoomDao.kt: This interface defines the Data Access Object (DAO) methods for interacting with the employee table in the database. It includes methods for searching, inserting, and clearing employee data.
EmployeeViewModel.kt: This ViewModel class holds the application logic for managing employee data. It provides functions to search for employees, insert new employees, and clear the entire list.
build.gradle: This file specifies the Gradle dependencies needed for the project, including Room and lifecycle libraries.

MainContent Composable

The MainContent composable is the heart of the UI. It utilizes several functionalities:

It retrieves a reference to the EmployeeViewModel using viewModel.
It maintains a local state variable textState to store the search query entered by the user.
It collects the flow of searched employees from the ViewModel using searchEmp function and stores the result in list state variable.

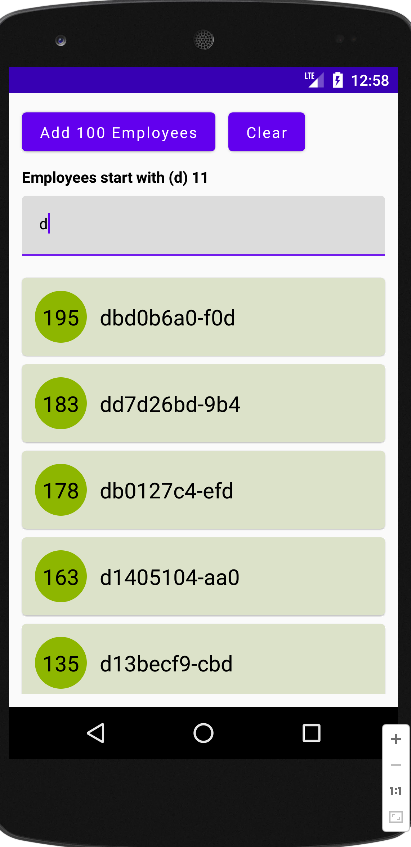

The UI displays the number of employees, a search bar for filtering, and a list of employees retrieved from the database.

Summary

This code showcases the integration of Jetpack Compose, Room, and ViewModel to build a search functionality in an Android application. It demonstrates how to manage UI state, handle asynchronous data updates with Flow, and interact with a local database for data persistence.

MainActivity.kt


package com.example.composeroomexample

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.foundation.background
import androidx.compose.foundation.layout.*
import androidx.compose.foundation.lazy.LazyColumn
import androidx.compose.foundation.lazy.itemsIndexed
import androidx.compose.foundation.shape.CircleShape
import androidx.compose.material.*
import androidx.compose.runtime.Composable
import androidx.compose.runtime.collectAsState
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.remember
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.clip
import androidx.compose.ui.graphics.Color
import androidx.compose.ui.text.font.FontWeight
import androidx.compose.ui.unit.dp
import androidx.lifecycle.viewmodel.compose.viewModel
import java.util.*

class MainActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContent { MainContent() }
    }
}


@Composable
fun MainContent(){
    val model = viewModel<EmployeeViewModel>()
    val textState = remember{ mutableStateOf("")}
    val list = model.searchEmp(textState.value)
        .collectAsState(initial = emptyList())

    Column(
        modifier = Modifier.padding(12.dp),
        verticalArrangement = Arrangement.spacedBy(8.dp)
    ) {
        Row(
            horizontalArrangement = Arrangement.spacedBy(12.dp)
        ){
            // add new student
            Button(onClick = {
                for (i in 1..100){
                    model.insert(
                        Employee(
                            null,UUID.randomUUID().toString()
                        )
                    )
                }
            }) { Text(text = "Add 100 Employees") }

            // delete all students
            Button(onClick = { model.clear() }) {
                Text(text = "Clear")
            }
        }

        Text(
            text = if (textState.value.trim().isEmpty()){"Employees"}
            else {"Employees start with (${textState.value.trim()})"} +
                    " ${list.value.size}",
            fontWeight = FontWeight.Bold
        )

        Row() {
            TextField(
                value = textState.value,
                onValueChange = {textState.value = it},
                modifier = Modifier.fillMaxWidth(),
                placeholder = { Text(text = "Search employee")}
            )
        }

        LazyColumn(
            verticalArrangement = Arrangement.spacedBy(8.dp),
            contentPadding = PaddingValues(vertical = 12.dp)
        ) {
            itemsIndexed(list.value) { index,item ->
                Card(
                    modifier = Modifier.fillMaxWidth(),
                    backgroundColor = Color(0xFFDCE2C9)
                ) {
                    Row(
                        modifier = Modifier.padding(12.dp),
                        verticalAlignment = Alignment.CenterVertically
                    ) {

                        Box(
                            Modifier.size(48.dp).clip(CircleShape)
                                .background(Color(0xFF8DB600)),
                            contentAlignment = Alignment.Center
                        ) {
                            Text(
                                text = "${item.id}",
                                style = MaterialTheme.typography.h6
                            )
                        }

                        Spacer(modifier = Modifier.width(12.dp))
                        Text(
                            text = item.fullName.take(12),
                            style = MaterialTheme.typography.h6
                        )
                    }
                }
            }
        }
    }
}

RoomSingleton.kt


package com.example.composeroomexample

import androidx.room.Database
import androidx.room.Room
import androidx.room.RoomDatabase
import android.content.Context

@Database(entities = [Employee::class], version = 1, exportSchema = false)
abstract class RoomSingleton : RoomDatabase() {
    abstract fun employeeDao():EmployeeDao

    companion object {
        private var INSTANCE: RoomSingleton? = null
        fun getInstance(context: Context): RoomSingleton {
            if (INSTANCE == null) {
                INSTANCE = Room.databaseBuilder(
                    context,
                    RoomSingleton::class.java,
                    "roomdb")
                    .build()
            }
            return INSTANCE as RoomSingleton
        }
    }
}

RoomEntity.kt


package com.example.composeroomexample

import androidx.room.ColumnInfo
import androidx.room.Entity
import androidx.room.PrimaryKey

@Entity(tableName = "employeeTbl")
data class Employee(
    @PrimaryKey
    var id:Long?,

    @ColumnInfo(name = "uuid")
    var fullName: String
)

RoomDao.kt


package com.example.composeroomexample

import androidx.room.*
import kotlinx.coroutines.flow.Flow

@Dao
interface EmployeeDao{
    @Query("SELECT * FROM employeeTbl WHERE uuid" +
            " LIKE:startsWith || '%' ORDER BY id DESC")
    fun searchEmployee(startsWith:String):Flow<List<Employee>>

    @Insert(onConflict = OnConflictStrategy.REPLACE)
    suspend fun insert(employee:Employee)

    @Query("DELETE FROM employeeTbl")
    suspend fun clear()
}

EmployeeViewModel.kt


package com.example.composeroomexample

import android.app.Application
import androidx.lifecycle.*
import kotlinx.coroutines.Dispatchers
import kotlinx.coroutines.flow.Flow
import kotlinx.coroutines.launch


class EmployeeViewModel(application:Application)
    : AndroidViewModel(application){

    private val db:RoomSingleton = RoomSingleton
        .getInstance(application)

    fun searchEmp(startsWith:String):Flow<List<Employee>>{
        return db.employeeDao().searchEmployee(startsWith)
    }

    fun insert(employee: Employee){
        viewModelScope.launch(Dispatchers.IO) {
            db.employeeDao().insert(employee)
        }
    }

    fun clear(){
        viewModelScope.launch(Dispatchers.IO) {
            db.employeeDao().clear()
        }
    }
}

build.gradle [dependencies]


apply plugin: 'kotlin-kapt'

dependencies {
    def room_version = "2.4.2"
    implementation "androidx.room:room-runtime:$room_version"
    implementation "androidx.room:room-ktx:$room_version"
    kapt "androidx.room:room-compiler:$room_version"

    implementation "androidx.lifecycle:lifecycle-viewmodel-ktx:2.5.0-alpha06"
    implementation 'androidx.lifecycle:lifecycle-viewmodel-compose:2.5.0-alpha06'
}
